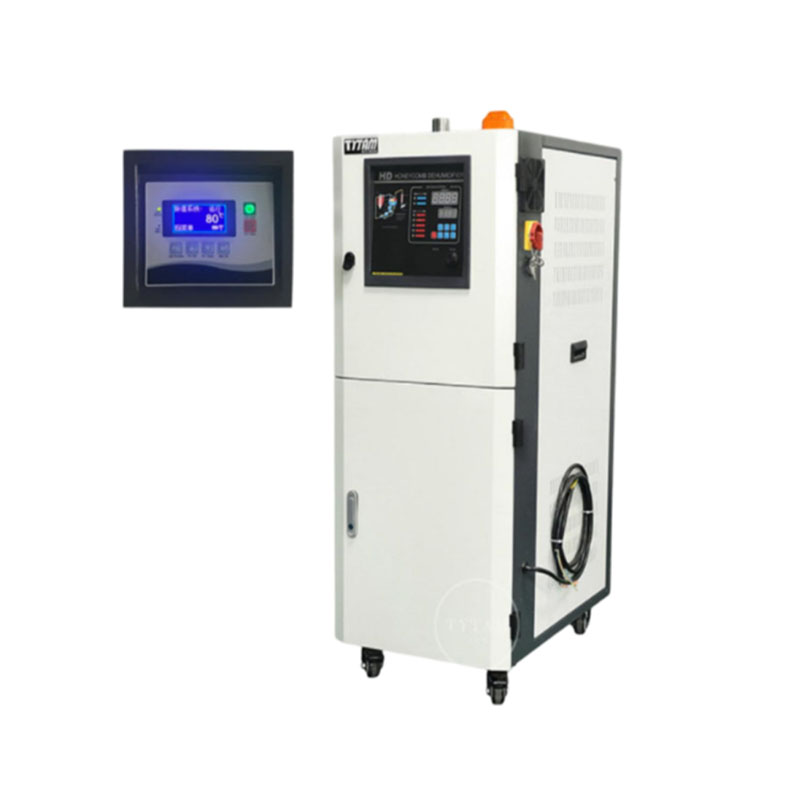

Rotary Dehumidifier

1: Adopt P.1.D temperature control system.
2: The dehumidification system adopts a double cooler structure to ensure a lower dew point.
3: Optional dryer for dehumidification and drying operations.
4: PLC control with LCD control touch-screen human-machine interface is available for purchase.
5: A dew point meter that can monitor the dehumidification effect of the machine in real time is available for selection.
6: There are 11 models in this series of products, with a maximum drying air volume of 4000m3/hr.

Consult

Features Technical Indicators Overall Dimension

Models	50H	80H	120H	150H	200H	300H	400H	500H	700H	1000H	1500H
Drying air volume(m/hr)	50	80	120	150	200	300	400	500	700	1000	1500
DRYING FAN POWER(KW)	0.85	0.85	0.85	1.6	1.6	3	3	5.5	7.5	8.5	11
Regenerative fan power(KW)	0.4	0.4	0.4	0.85	0.85	0.85	0.85	1.6	2.2	4	4
REGENERATIVE ELECTRIC HEATING POWER (KW)	3	4	4	4	6	6	6	9	9	12	24
Outlet Pipe Diameter (inch)	2	2	2	2.5	2.5	3	3	4	4	5	5
Inlet Pipe Diameter (inch)	2.5	2.5	2.5	3.5	3.5	4	4	5	5	6	6
Voltage specifications	400v,50HZ
Models
H(mm)	1260	1360	1360	1560	1570	1745	1745	1935	1935	2145	2145
W(mm)	480	530	530	660	660	900	900	900	900	1300	1300
D(mm)	755	820	820	1050	1050	1255	1255	1380	1380	1550	1910
Weight (kg)	80	120	140	215	225	240	280	290	300	400	510
