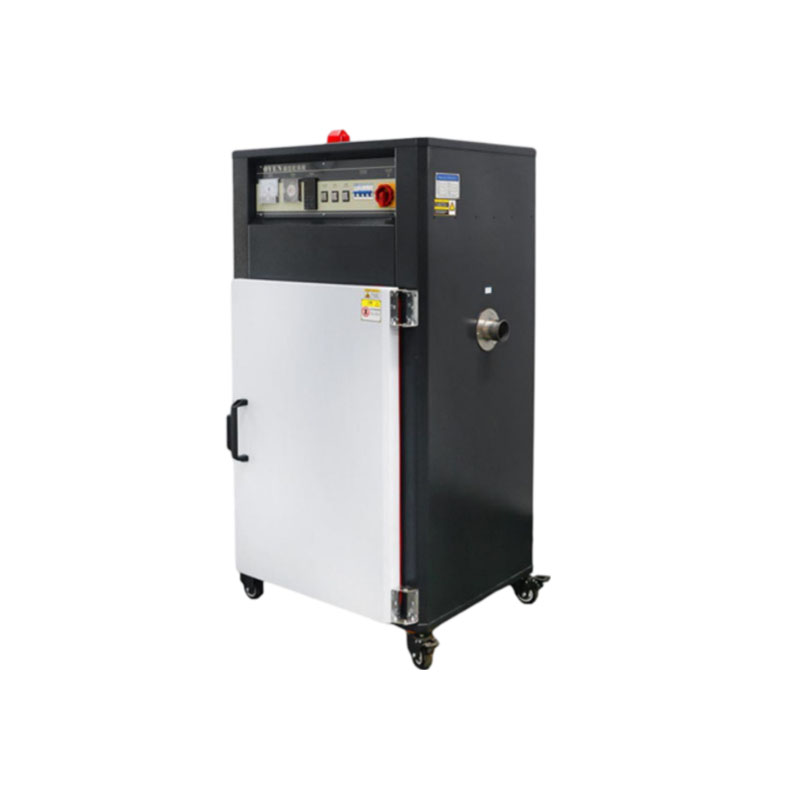

Box Dryer

1: Optimized design, convenient for maintenance.
2: 24-hour timing device, easy to operate.
3: Customizable baking trays or whole machines according to needs.
4: Equipped with over-temperature insulator to avoid over-temperature drying.
5: Adopt precision P.1.D electronic temperature control to achieve uniform drying effect.

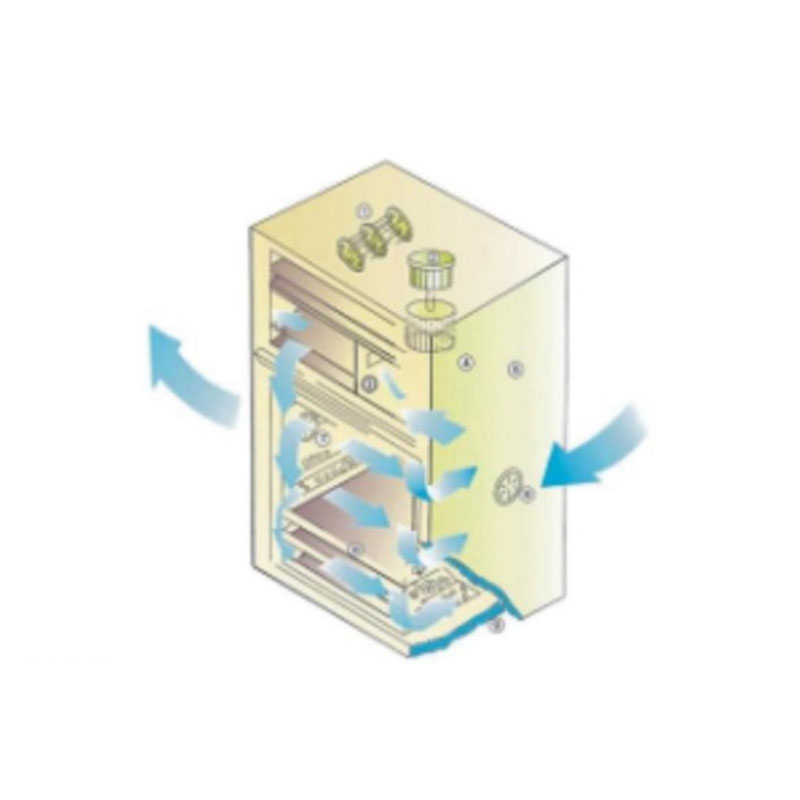

6: The air inlet and exhaust port can be adjusted to facilitate the adjustment of air volume.
7: High-temperature sealed door can maintain consistent temperature and reduce heat loss to ensure that the raw materials are not contaminated.

Consult

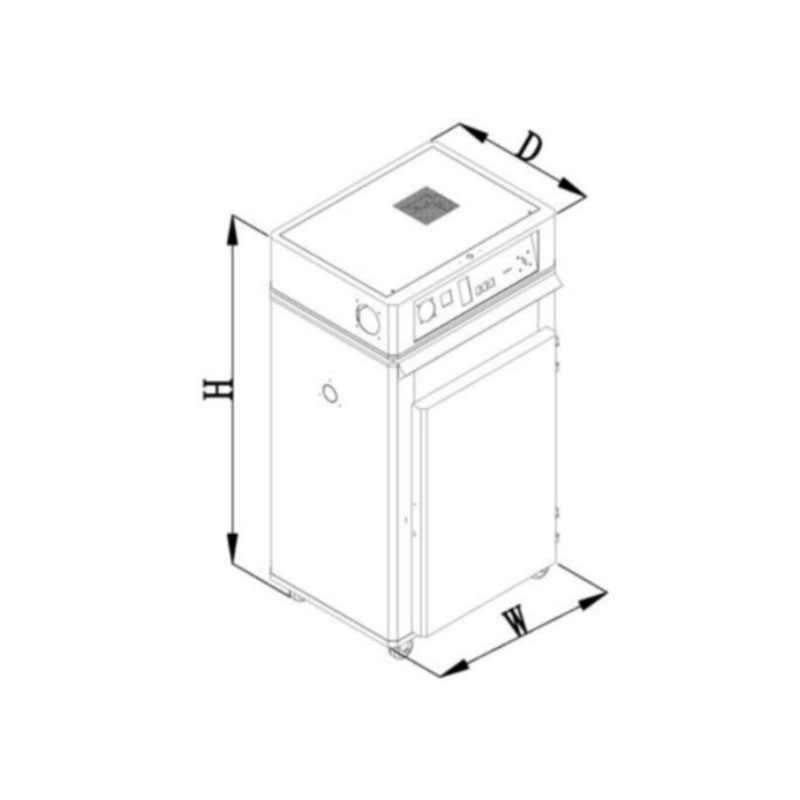

Features Technical Indicators Overall Dimension

Machine	Electric Heating Power(KW)	Windmill Motor(KW)	Maximum Drying Temperature (C)	Number of Shelves (PCS)	CHARGING CAPACITY(KG)	External Dimensions (mm)	Internal Dimensions (mm)	Net Weight(KG)
HTCD-5	4.5	0.37	200	5	50	1200800610	1550800610	150
HTCD-9	4.5	0.35	200	9	90	1440800610	1550800610	180
HTCD-20	9	1.5	200	20	200	17001210860	1000990800	415
HTCD-20L	18	1.5	200	20	350	186518001060	120016001000	550
